SJS Stepped Jaw Spreaders

SJS Stepped Jaw Spreaders

  • Capacity 14 tons per spreader unit
  • Maximum spread 2.36"
  • Supplied with safety block & stepped blocks

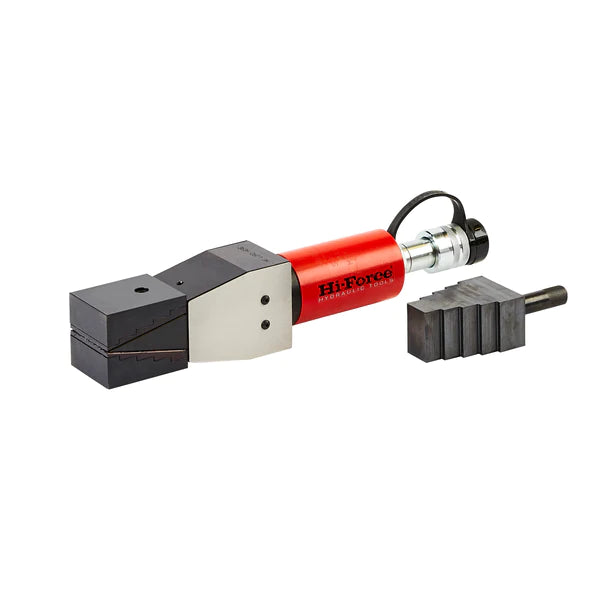

Single acting, spring assisted return. High strength steel construction. Compact, lightweight, and easy to use. Low height jaw tips can easily fit into an 0.32" gap. Maximum spreading distance 2.36" when using the supplied step blocks. Self-contained spreader unit (SJS10-M) incorporates an integral manual hydraulic pump with multi-position operating lever.

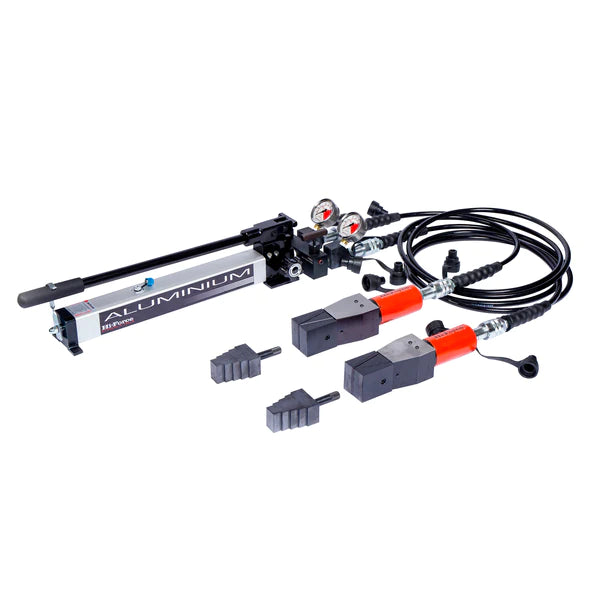

Twin spreader kit (model TK) is ideal for applications requiring two tools to be operated simultaneously. Offers an even spread of the flange joint during gasket replacement.
